K8

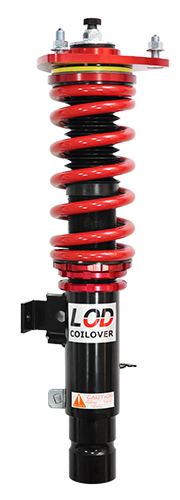

K8 Full height adjustable coilover kit, monotube structure with 32 level soft to hard adjustable damper

1 Upper mount

Depending on different vehicle use strengthening rubber upper mount or directional bearing upper mount. Pre MacPherson style coilover’s metal wave upper mount can be adjusted with the inclination angle. Some vehicle are equipped with camber angle adjustment structure, some are not fitted with modified upper mount are suitable for the original vehicle’s upper mount

2 Special spring

Use advanced chrome silicon steel, after professional adjustment special spring are used for each vehicle

3 32 level adjustbale damper,monotube structure

The 32 level adjustable compression rebound damping structure and special needle valve are adopted. Due to the large range of damping adjustment, the adjustable range can be enjoyed and monotube structure provide excellent control

4 Spring seat + spiral gasket

Customized spring seat + hard resin gasket structure is adopted to engage with the parts of height adjustable gasket with excellent smoothness which makes the height adjustment operation more flexible

5 Full height adjustable structure

Full height adjusting structure can lower about 30-50 mm height and spring preloading can be individually adjusted to millimeters, changing height will not affect driving comfort
